Eleta ProLift 4000

High-speed gearless passenger elevator for commercial high-rise buildings operating on 415V 3-Phase power.

Power Supply

415V 3-Phase (50Hz)

Power Consumption

11 kW High-Efficiency VVVF

Capacity

13 Passengers / 1000 kg

Speed

2.5 m/s High Speed

Energy Rating

VDI 4707 Class A

Compliance

EN 81-20 / EN 81-50

Warranty

5-Year Comprehensive

Engineering Parameters

Technical Specifications

Every detail engineered for performance, safety, and architectural elegance.

Engineering Parameter	Specification Standard
Power Supply	415V 3-Phase (50Hz)
Power Consumption	11 kW High-Efficiency VVVF
Capacity	13 Passengers / 1000 kg
Speed	2.5 m/s High Speed
Max Travel	60 m (20 floors)
Drive	Geared / Gearless Traction (VVVF)
Door System	Center Opening Automatic (900 mm)
Cabin Size	1600 x 1500 x 2400 mm

Engineered Without Compromise

From intelligent power management to multiple independent safety systems, every component is engineered for dependable everyday performance.

01 / Core Engineering

01

415V 3-Phase Power Integration

Engineered for standard 415V 3-phase commercial and high-capacity electrical supply with built-in phase monitoring.
02

11 kW High-Efficiency VVVF Traction Performance

High-torque permanent magnet gearless motor engineered for intensive, continuous commercial duty.
03

Optimized Hoistway Efficiency

Engineered for maximum structural efficiency with reduced overhead and compact pit space.
04

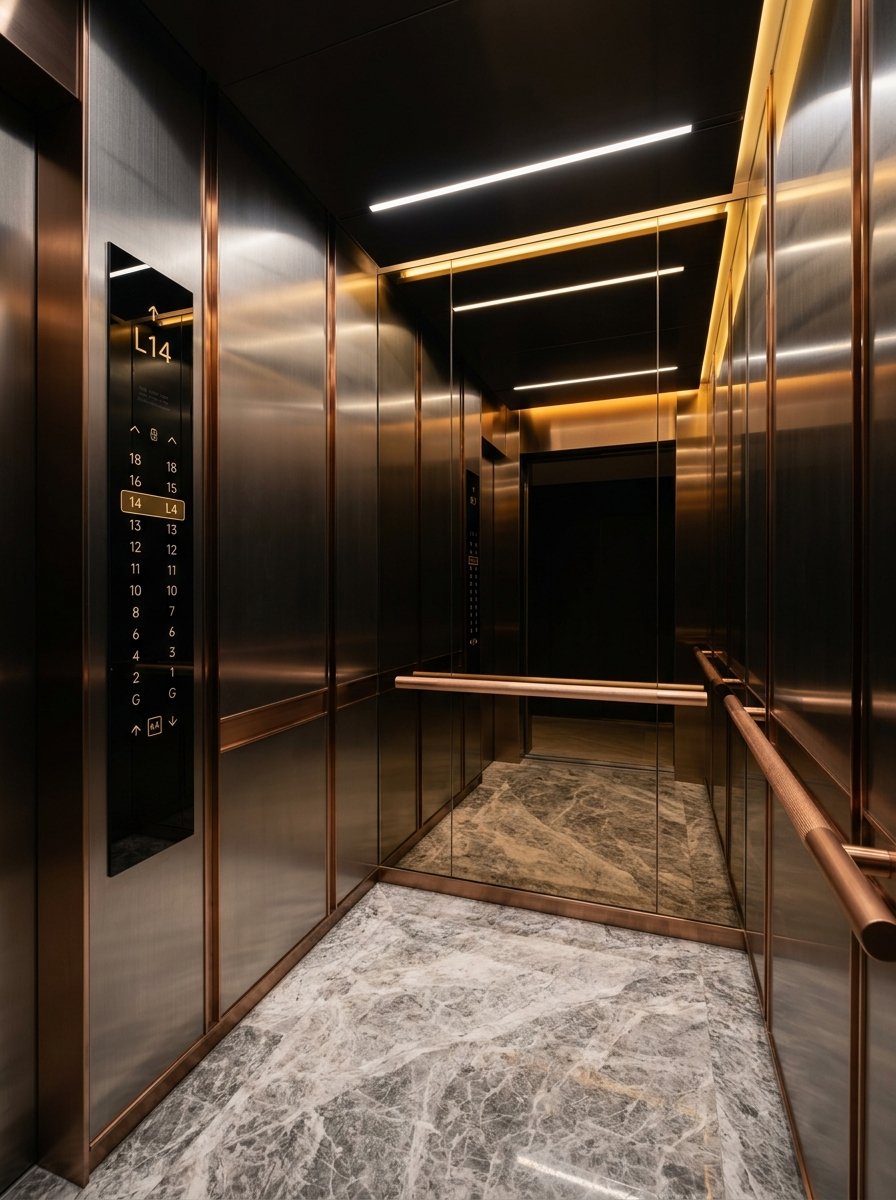

Custom Cabin Architecture

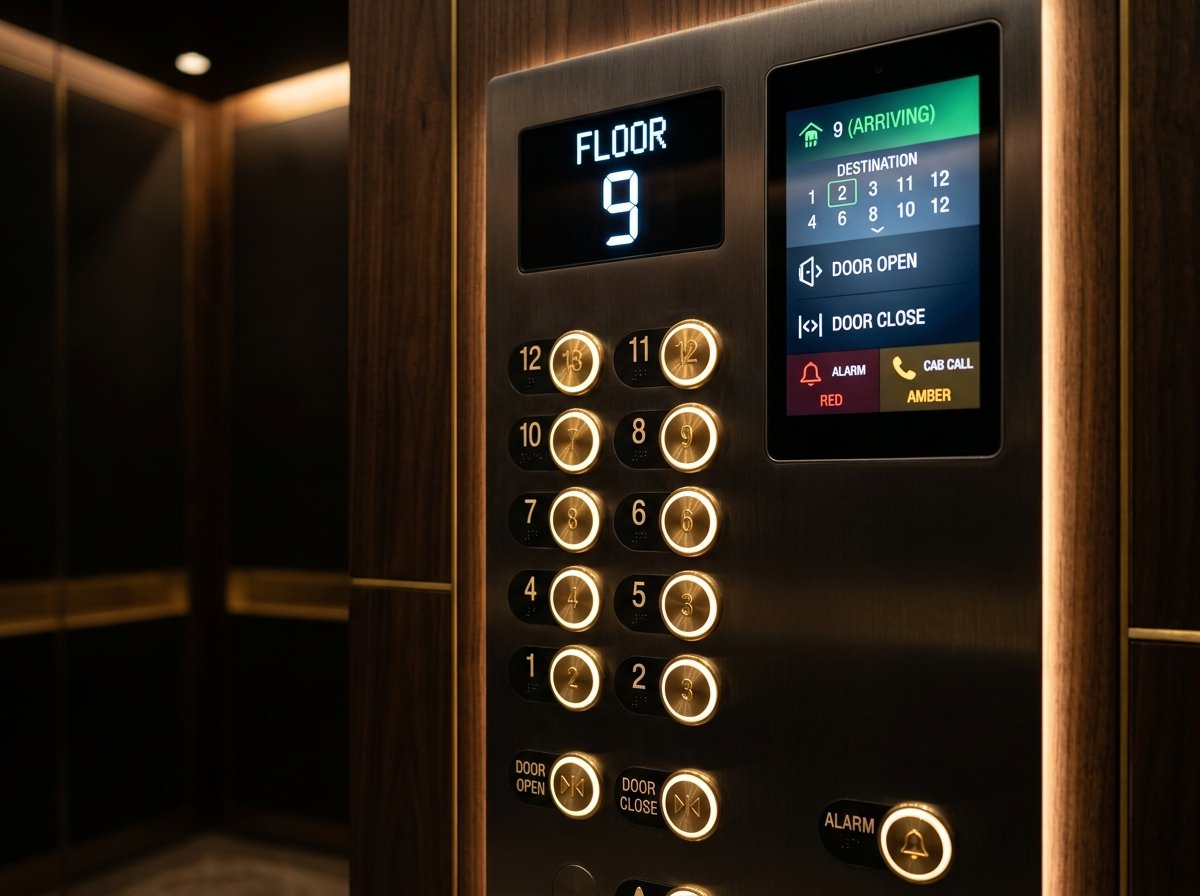

Finishes, lighting, touch COP, and handrails tailored to the architectural space.
05

Automatic Door Systems

Whisper-quiet VVVF door operator with multi-speed synchronization and obstruction detection.
06

Commercial & High-Rise Applications

Suitable for corporate high-rises, commercial buildings, healthcare, and residential developments.

02 / Safety Architecture

Multiple independent safety systems work together to protect passengers during normal operation and unexpected conditions.

ARD BATTERY BACKUP

Automatic Rescue Device for controlled operation during power interruption.
EMERGENCY BRAKE & SPEED GOVERNOR

Mechanical protection designed to respond to overspeed and emergency conditions.
INFRARED DOOR CURTAIN

Non-contact detection system that helps prevent door-related accidents.
EMERGENCY STOP & ALARM

Immediate passenger control and emergency alert inside the cabin.
FAILSAFE LANDING

Controlled landing response during power interruption.

Architectural Scope

CE Certified Components

TÜV SÜD Certified Safety

100% Made in Italy

At Eleta Lifts and Escalators, we believe every lift we install is a step toward smarter, safer, and more efficient vertical mobility.
